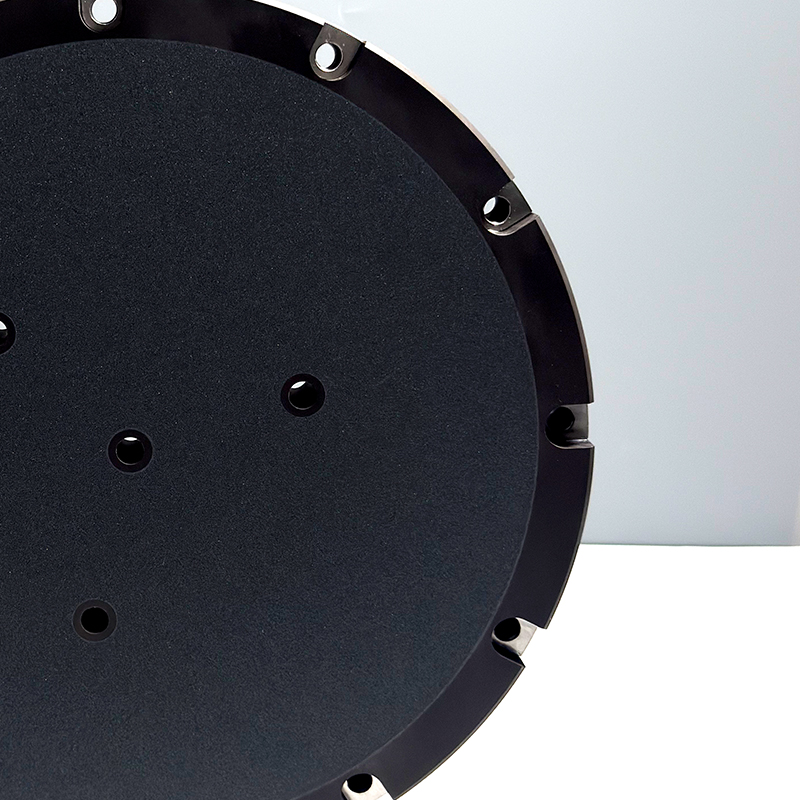

Porous Suction Cup
The process excels in precise operations in many fields such as electronics and semiconductors, providing stable and reliable adsorption solutions for your production processes.Ceramic vacuum suction cups have the characteristics of high flatness, high parallelism, dense and uniform organization, high hardness, good permeability, easy to trim and so on. Miniature aperture and uniform distribution, internal through each other, after grinding, the surface is smooth and delicate, good flatness, at the same time with super equipment stability and adsorption uniformity. These ceramic vacuum chuck products are important tools in the field of electronic engineering, widely used in picking up, handling, positioning and fixing various workpieces to ensure the safety and precision of the production process. Including alumina, silicon carbide, aluminum nitride and other precision ceramic materials suction cups, can be customized according to user requirements.

Specification Size 4 inch 6 inch 8 inch 12 inch
Flatness 3μm 3μm 5μm 5μm
Porous ceramic color White、green、yellow、black、blue、brown
Porous ceramic material Aluminium oxide,Silicon carbide
Porous ceramic pore size 20—-100μm
Porous ceramic porosity 30%—-45%
Antistatic function Optional
Base material Stainless steel, Aluminum alloy and Ceramics, Silicon Carbide

Step 1 Product Features

Ceramic vacuum chucks are widely used in the field of electronic engineering for processing and fixing of special products for thinning and cutting procedures.

  • Flatness, high parallelism
  • Dense and uniform tissue, high strength
  • Good permeability, uniform adsorption
  • Easy to dress
Step 2 Application Field
 Application Field Application
Printing Screen printing、Paper industry、Paint inspection、Pixel detection
Semiconductor Bonding;Dicing;Tape mounter;Polishing
 Processing Metal processing;Machining;Laser processing
LED/LCD Molding;Grinding;Cutting;Resin seal
